highlights
- Radiation heating for 2-inch samples, compatible with flagstyle sample plates
- 5DOF sample manipulation for RHEED studies and monolayer growth control
- Beam scanning for growth on larger areas

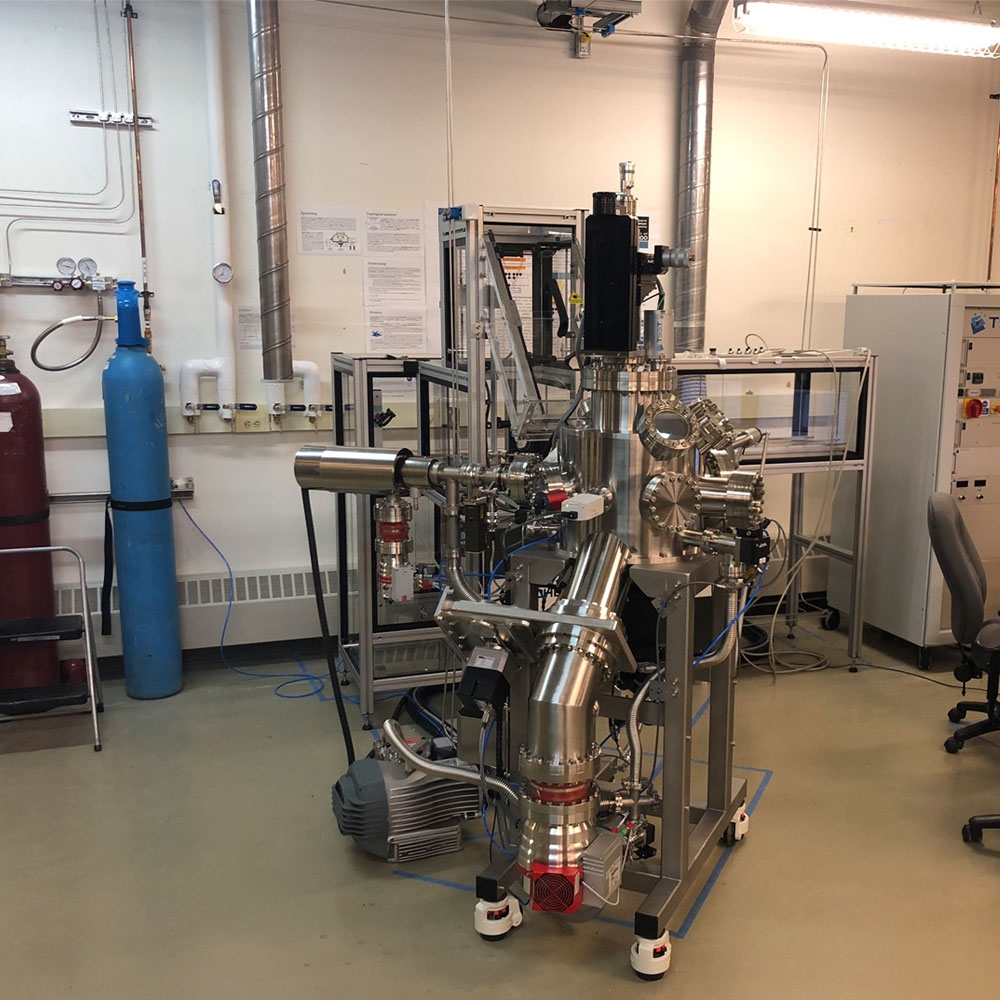

This PLD-RHEED system is equipped with radiative heating for up to 2-inch samples, also compatible with flagstyle sample plates.
The heating stage is uniquely designed with five degrees of freedom, necessary for sample alignment during RHEED experiments.
To improve thickness homogeneity on larger samples, the beamline is equipped with beam scanning, which allows controlled and preprogrammed scanning motion of the laser pulse over the target.
This highly complete system combines the possibility of full thin-film monolayer growth control on small samples, with the possibility of upscaling to 2-inch samples.
